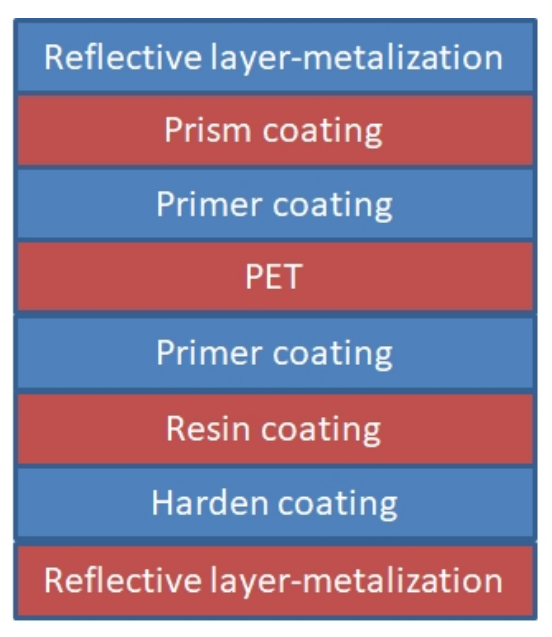

Both Sides Coated PET Base Film for Reflective Film of Biafacial Glass Module
Applications
● Electrical vehicle battery
● Power supply insulation
● TV/monitor insulation
● Foil laminate for insulation and shielding
● Medical electronics
● PCB insulation
● Panel printing application with flame retardant requirement
● Insulation label: battery Labels, notebook, and etc.
● Membrane-switch
● Business equipment insulation: computer, electrograph, telephone, and etc.
PC
● Parameter
|
Properties |
Unit |
YM20 |
||
|
Thickness |
μm |
25 |
38 |
|
|
Tensile Strength |
MD |
MPA |
165 |
223 |
|
TD |
MPA |
221 |
314 |
|
|
Elongation |
MD |
% |
146 |
176 |
|
TD |
% |
79 |
133 |
|
|
Shrinkage |
MD |
% |
1.0 |
1.3 |
|
TD |
% |
0 |
-0.1 |
|
|
Friction Coefficient |
μs |
|
0.36 |
0.20 |
|
μd |
|
0.32 |
0.15 |
|
|
Transmittance |
% |
92.1 |
91.6 |
|
|
Haze |
% |
2.34 |
1.38 |
|
