Introduction

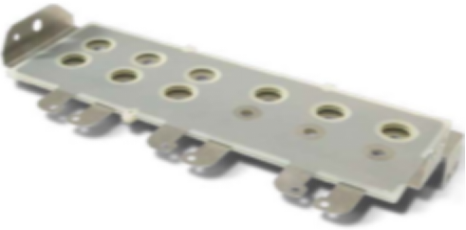

Laminated busbar is a new type of circuit connection device used in many industries, offering more advantages compared to traditional circuit systems.The key insulating material, the laminated busbar polyester film (Model No. DFX11SH01), has low transmittance (less than 5%) and high CTI value (500V). The Laminated busbar has a wide range of applications, not only for the current market situation, but also for the future development of the new energy industry.
Product advantages
|
Category |
Laminated Busbar |
Traditional Circuit System |
|
Inductance |
Low |
High |
|
Installation Space |
Small |
Large |
|
Overall Cost |
Low |
High |
|
Impedance & Voltage Drop |
Low |
High |
|
Cables |
Easier to cool, smaller temperature rise |
Difficult to cool, higher temperature rise |
|
Number of Components |
Fewer |
More |
|
System Reliability |
High |
Lower |
Product Features
|
Product project |
Unit |
DFX11SH01 |
|
Thickness |
μm |
175 |
|
Breakdown voltage |
kV |
15.7 |
|
Transmittance （400-700nm） |
% |
3.4 |
|
CTI value |
V |
500 |
Product application
|
Application fields |
Examples of real-life scenarios |
|
Communication devices |
Large communication server |
|
transportation |
Rail transit、Electric vehicle |
|
Renewable energy |
Wind energy 、Solar energy |
|
Power infrastructure |
Substation、charging station |
Post time: Feb-17-2025
