Rigid Laminated Sheet, consists of woven glass cloth impregnated with epoxy thermosetting resin, laminated under high temperature and high pressure. The glass fabric cloth shall be alkali-free and treated by silane coupler. Applied in B~H-class electrical motors,HV/UHV DC Transmission project, VSC-HVDC, rail transit, traction motor, transformer, rectifier, electronic control cabinet and floor for rail transit facility as insulating structural components, which has flame resistance requirements or not, or other ways.


Rigid Laminate

212 (1)

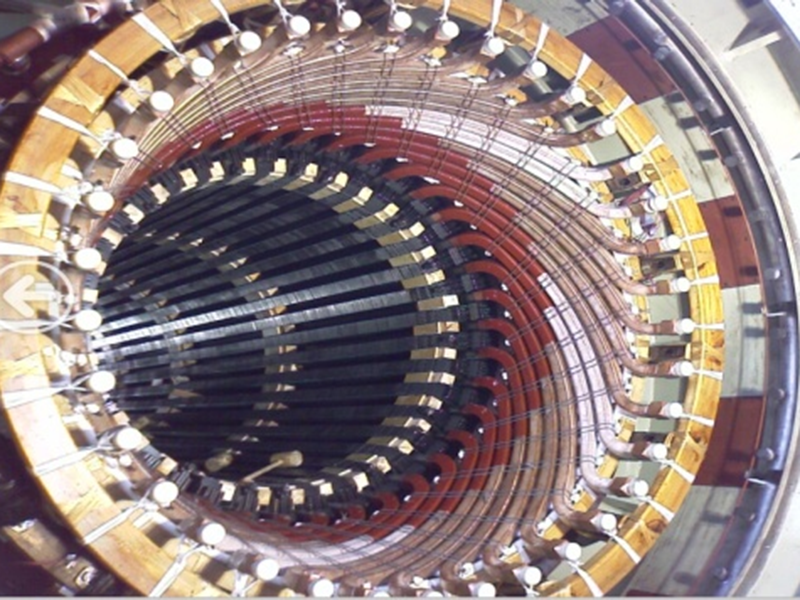

212 (2)
Rigid Laminate (1)
Rigid Laminate (2)

● Sheets Mainly for Electrical Applications

Grade

Thermal

Main Features

3025

E-105℃

Wear-resistant

3240

B-130℃



3253

H-180℃

Ultra-high mechanical strength underhigh temp.,halogen-free

D326

H-180℃

Ultra-high mechanical strength underhigh temp

D333

C-200℃

Ultra-high mechanical strength underhigh temp

3242

F-155℃



D327

F-155℃

High heat strength retention, V-1

D328

F-155℃

High heat strength retention, V-0,UL,benzoxazine resin

DF204

F-155℃

High heat strength retention, V-0,UL,epoxy resin

D331

H-180℃

High heat strength retention, V-0,UL,benzoxazine resin

D329

H-180℃

PTI ≥ 500V, V-0,halogen-free

D338

H-180℃

V-0

D330

B-130℃

Semi-conductive, black

D339

F-155℃

Semi-conductive, black

D350A

H-180℃

High heat strength retention

EPGC201 / 202

B-130℃

G10 / FR4 ( UL )

EPGC203 / 204

F-155℃

G11 / FR5 ( UL )

EPGC205

F-155℃

Glass roving plain weaving fabric

EPGC306

F-155℃

CTI ≥ 500V

EPGC307

F-155℃

CTI ≥ 500V,Glass roving plain weaving fabric

EPGC308

H-180℃

High resistance after water immersion

DF3316A

C-200℃

High temperature resistance

DF336

F-155℃

CTI ≥ 600V, V-0,halogen-free

● Sheets for Non-electrical Applications

Grade

Thermal

Main Features

D332

F-155℃

Wear-resistant

D3524A

F-155℃

Black, flame retardant, high strength

DF3524B

F-155℃

Low density, flame retardant, applied as core material

D325

Kevlar anti-stab board,Security protection

D295

Prepreg. of Kevlar fabric for ballistic helmets,Security protection

D332

F-155℃

Wear-resistant

G3849

H-180℃

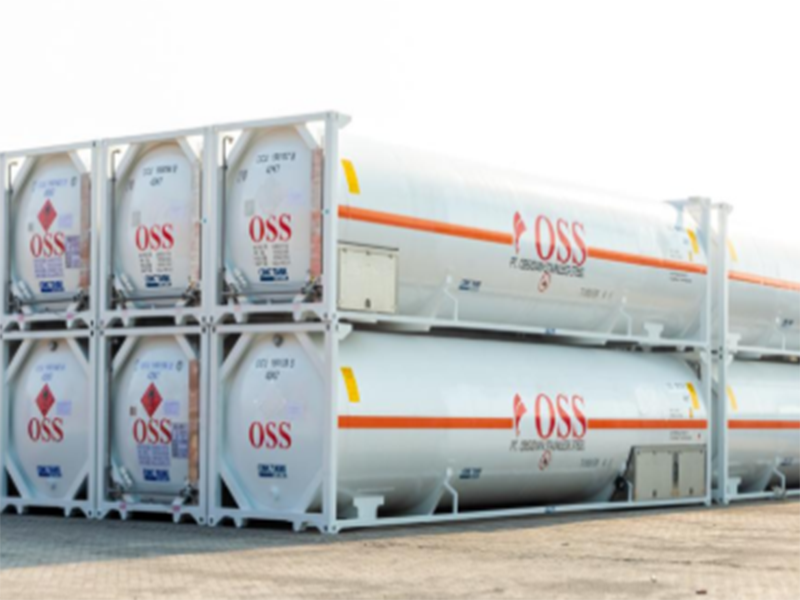

Applied in cryogenic equipments ( low temp. to -196℃ )

D3849

F-155℃

Applied in cryogenic equipments ( low temp. to -196℃ )

Z3849

B-130℃

Applied in cryogenic equipments ( low temp. to -196℃ )

DF3313L

B-130℃

low density, light weighted ,Good thermal insulation sheet

DF3314O

F-155℃

low density, light weighted ,Good thermal insulation sheet

Machined Part

Machined parts are mainly made of SMC, BMC, UPGM203 (GPO-3) prepreg, EPGC202 (FR4) and other raw materials by hot pressing or epoxy resin/epoxy vinyl resin/unsaturated polyester resin pultrusion forming.

● 工 - Type

img (1)

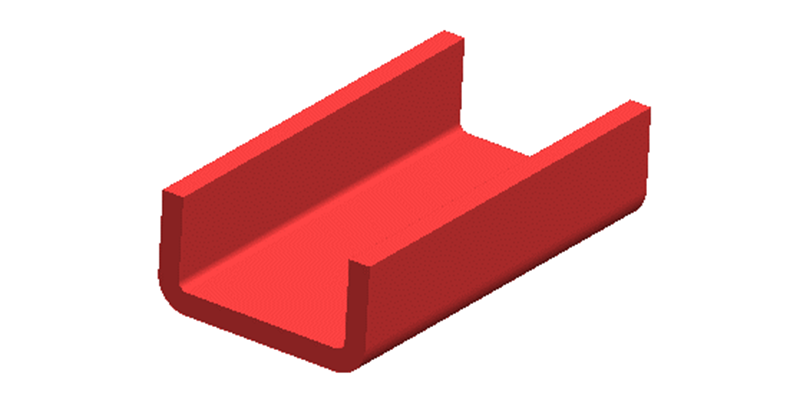

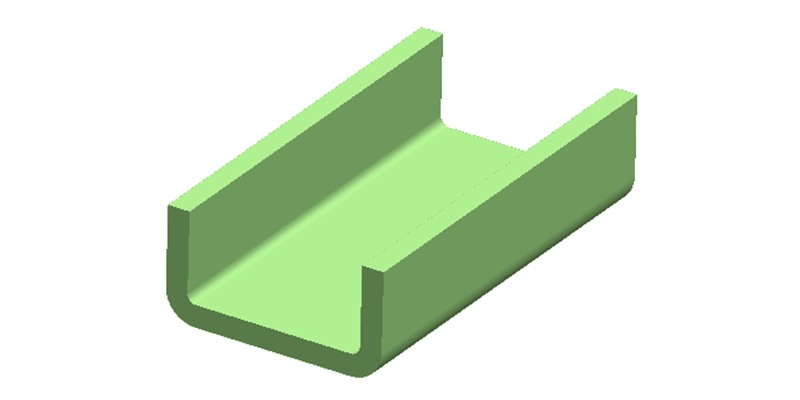

● U - Type

img (2)
img (3)

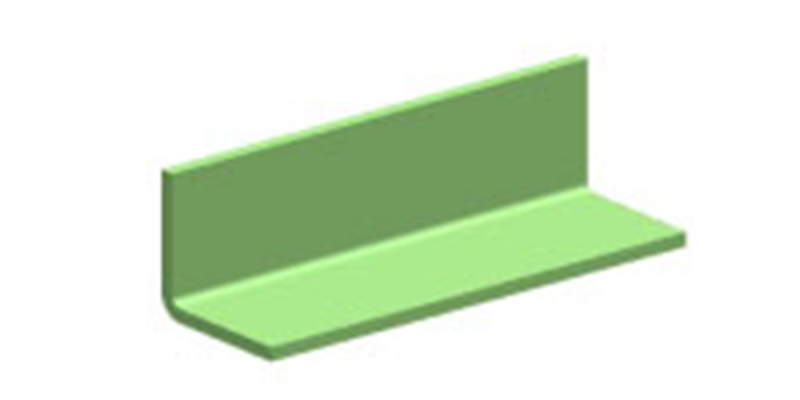

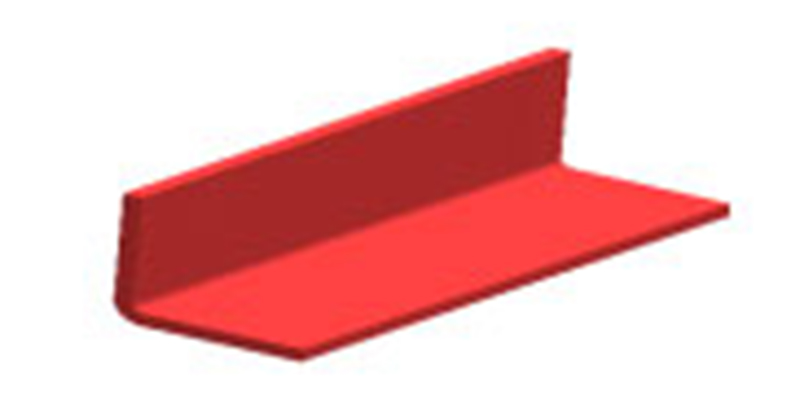

● L - Type

img (1)
img (2)

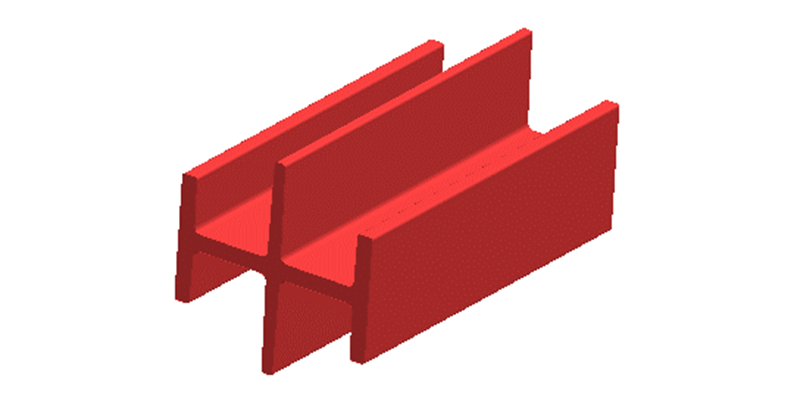

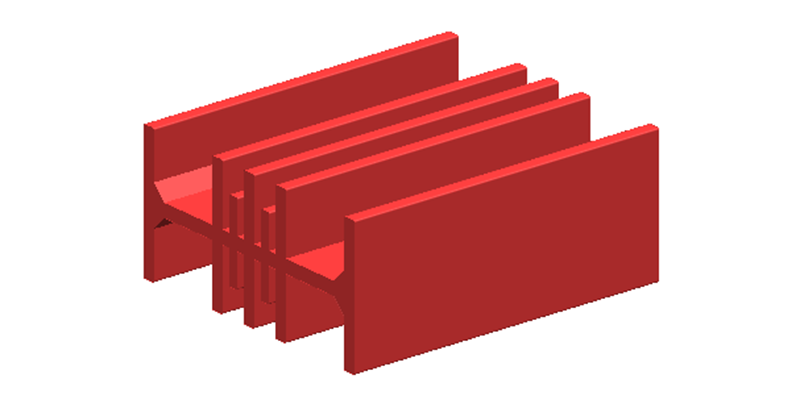

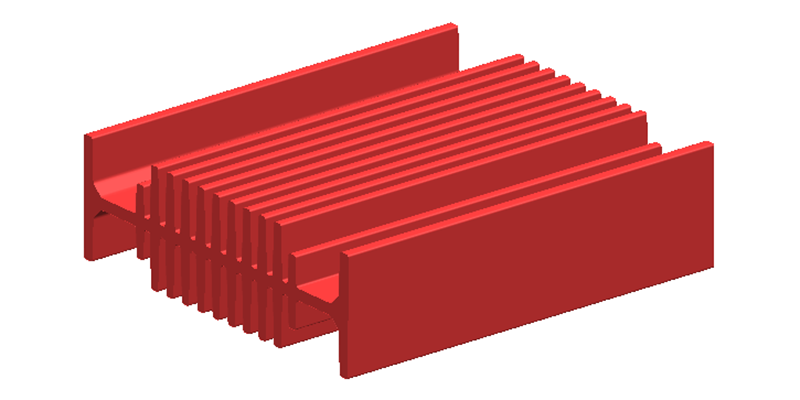

● 王 - Type

img (4)
img (5)
img (6)

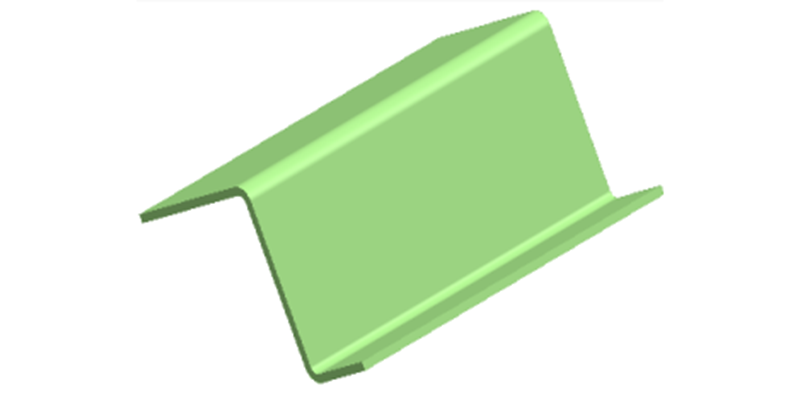

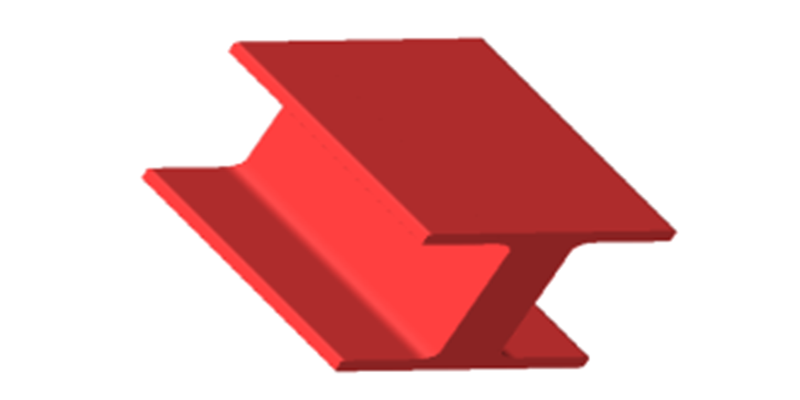

● Z - Type

img (7)

Applications

img (1)
imh (1)

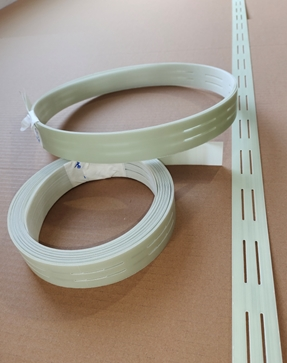

imh (2)
imh (3)

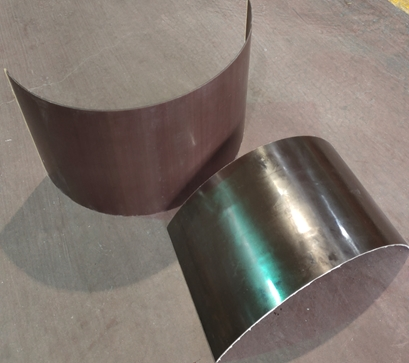

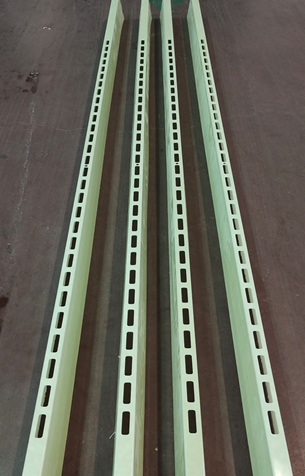

Extra-long special-sized resin-based fiber reinforced insulation parts

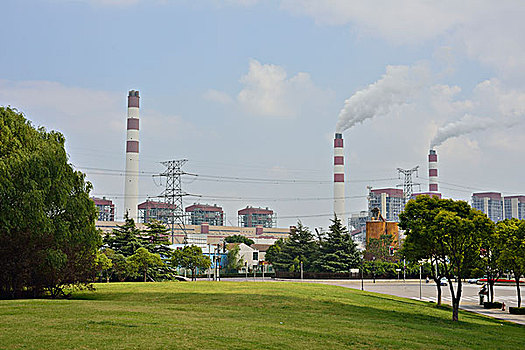

Applicable for thermal power generation (municipal waste power generation, waste gas power generation)

● Slot Liner



Performance

Unit

Values

1

Bending Strength(normal)

MPa

≥210

2

Vertical Bending Strength

(160℃±2℃)

MPa

≥170

3

Compression Strength

MPa

≥320

4

Tensile strength

MPa

≥270

5

AC Voltage resistance

V/60s

6000

● Insulation Pad



Performance

Unit

Values

1

Bending Strength

MPa

≥400

2

Tensile strength(vertical)

MPa

≥300

3

Electrical strength vertical laminar(90℃ oil)

MV/m

≥16.1

4

CTI

V

≥500

● Insulation Sheath Ring



Performance

unit

Values

1

Bending strength

MPa

 ≥400

2

Compression Strength vertical laminar

MPa

≥300

3

Thermal shock 320℃/1h

__

No de-lamination, bubble, resin flow

4

CTI



≥50
